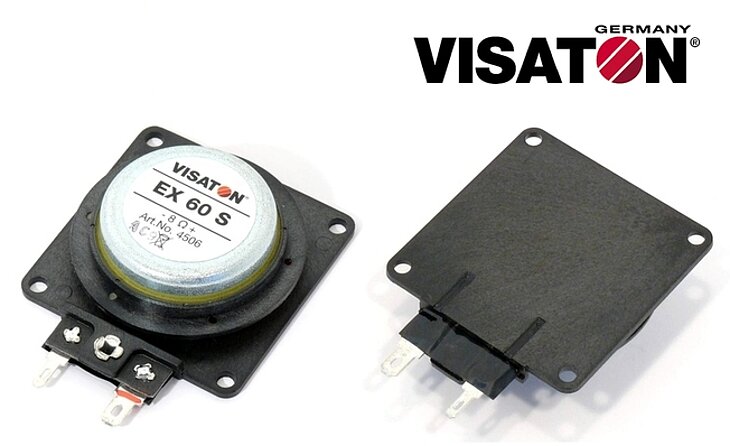

Instead of emitting sound via a conventional membrane, the EX 60 S directly excites the connected surface to vibrate and thus produces a uniform sound.
With its robust construction and simple installation, the EX 60 S is ideal for applications where loudspeakers need to be integrated inconspicuously or protected from vandalism. It enables innovative audio solutions in which sound and design can be perfectly combined.
Whether indoors or in protected outdoor areas - the Visaton EX 60 S opens up a wide range of possibilities for modern sound reinforcement solutions.
Typical applications
- Acoustic integration into furniture, walls or ceilings
- Public places with vandal-proof design
- Innovative sound designs on unusual materials
Spezifications
- Impedance: 8Ω (4Ω version also available)
- Music power consumption: 25W RMS (max. 25W)
- Voice coil diameter: Ø 32,5mm
- Dimensions (incl. housing): approx. 58×58×21mm
- Weight: approx. 0,12 – 0,13kg
- Connection: quick connector 4,8×0,8mm (+), 2,8×0,8mm (−)
- Operating temperature: –25°C … +70°C
